Type / Brand - MHYlevel
MHYlevel
Type / Brand - MHYlevel

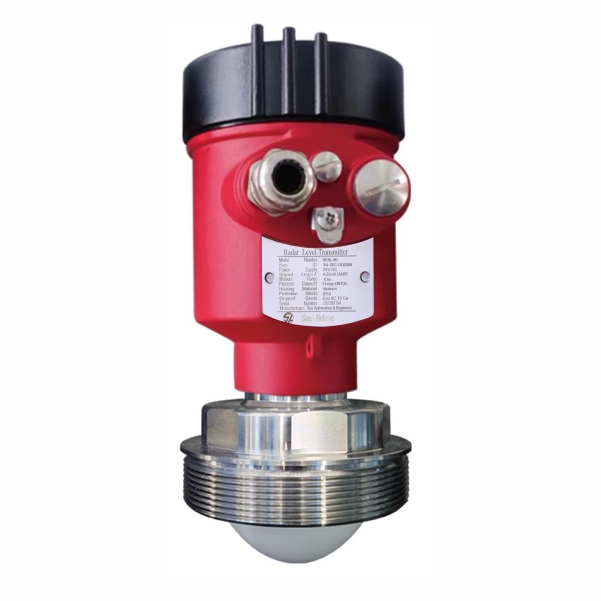

Description of mhylevel 26ghz high frequency radar level transmitter seal09

Application : Open water, waste water and etc
Measuring Range : 70meter
Process Connection : G1.5" male thread with bracket or flange
Medium Temperature : -40 °C ~ 80 °C
Process Pressure : Ambient
Accuracy : ± 3mm
Protection Grade : IP67
Frequency Range : 26GH
Signal Output : Rs485/ Modbus
Power : DC6-24V / four wire
Enclosure : SS or Casted Aluminum

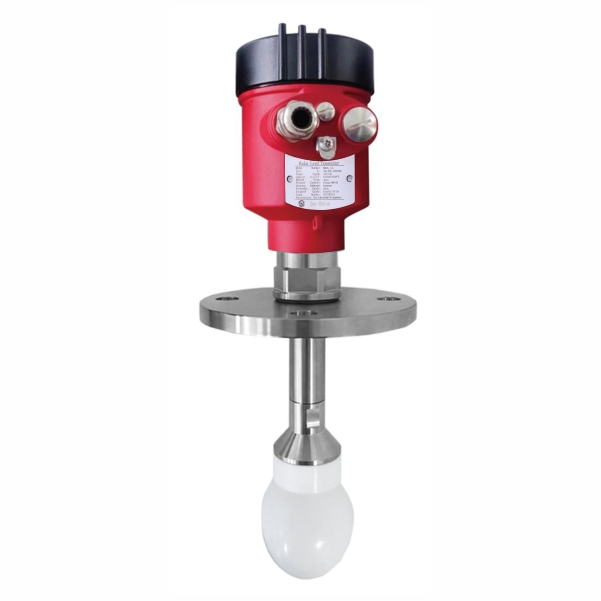

MHYlevel MHYlevel 26GHz High frequency Radar Level Transmitter SEAL06

Application : Solid material, Power Measuring Range : 30meter Process Connection : T hread, Flange Medium Temperature : -40 °C ~ 250 °C Process Pressure : -0.1 ~ 4.0 MPa Accur...

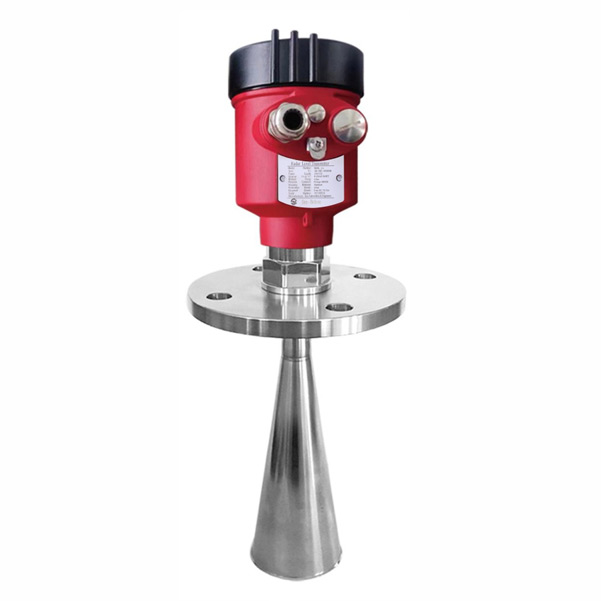

MHYlevel MHYlevel 26GHz High frequency Radar Level Transmitter SEAL03

Application : Solid material,Strong dust Measuring Range : 70meter Process Connection : Universal Flange Medium Temperature : -40 °C ~ 250 °C Process Pressure : -0.1~0.1 MPa A...

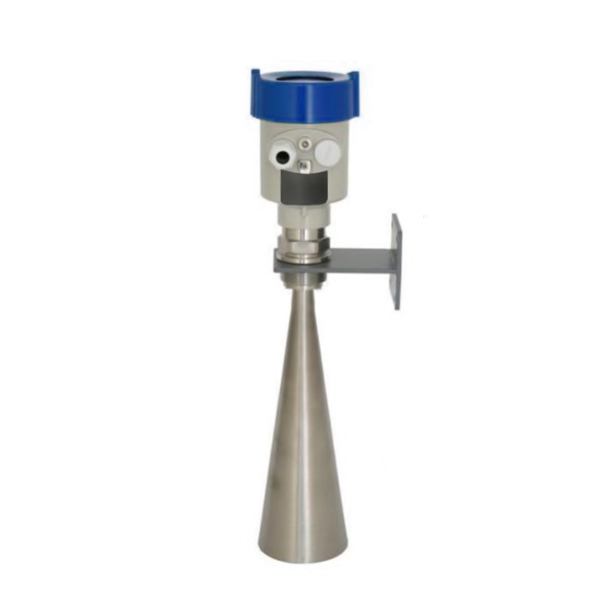

MHYlevel MHYlevel 26GHz High frequency Radar Level Transmitter SEAL02

Application : Liquid Measuring Range : 30meter Process Connection : Thread, Flange Medium Temperature : -40 °C ~ 150 °C Process Pressure : -0.1~0.3 MPa Accuracy : ± 3mm Prote...

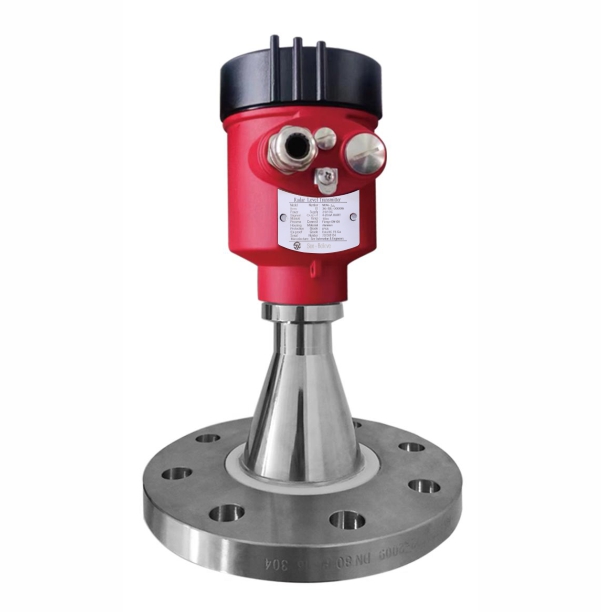

MHYlevel MHYlevel 26GHz High frequency Radar Level Transmitter SEAL04

Application : Solid material, Strong dust Measuring Range : 70meter Process Connection : Universal Flange Medium Temperature : -40 °C ~ 250 °C Process Pressure : -0.1~0.1 MPa ...
