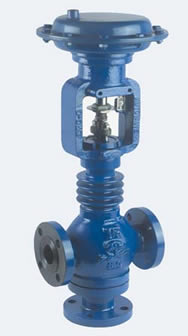

Description of globe 3 way valve

Globe 3 Way Control Valves are used to combine two flows or to divert flow into two outlets. They are designed to replace and perform the functions of two single ported control valves acting in opposite directions, in converging or diverging liquid flow service. They can be used to control the circulation of water, oil, sea water or other liquids in heating or cooling applications involving heat exchanger bypass control.

They can also be used in blending systems and on-off selector systems.

Body Designed and Manufactured as per ASME B 16.34
Body Form : Globe Type with Tail Piece to provide Third Port
Body MOC - Cast Iron, Carbon Steel, Stainless Steel (Special on request).

Characteristics
:
On / Off
Actuator Type
:
Piston (Yoke / Yokeless), Diaphragm
Actuator Action
:
Direct / Reverse / Double Acting
Direct acting air failure "Closes" Top Port
Direct acting air failure "Opens" Top Port.
Spring Ranges
:
1-2kg / cm2, 2-4 kg / cm2, 3-5 kg / cm2
Air Connection
:
1/4" NPT
Size
:
1/2" (15 mm) to 4" (100mm)

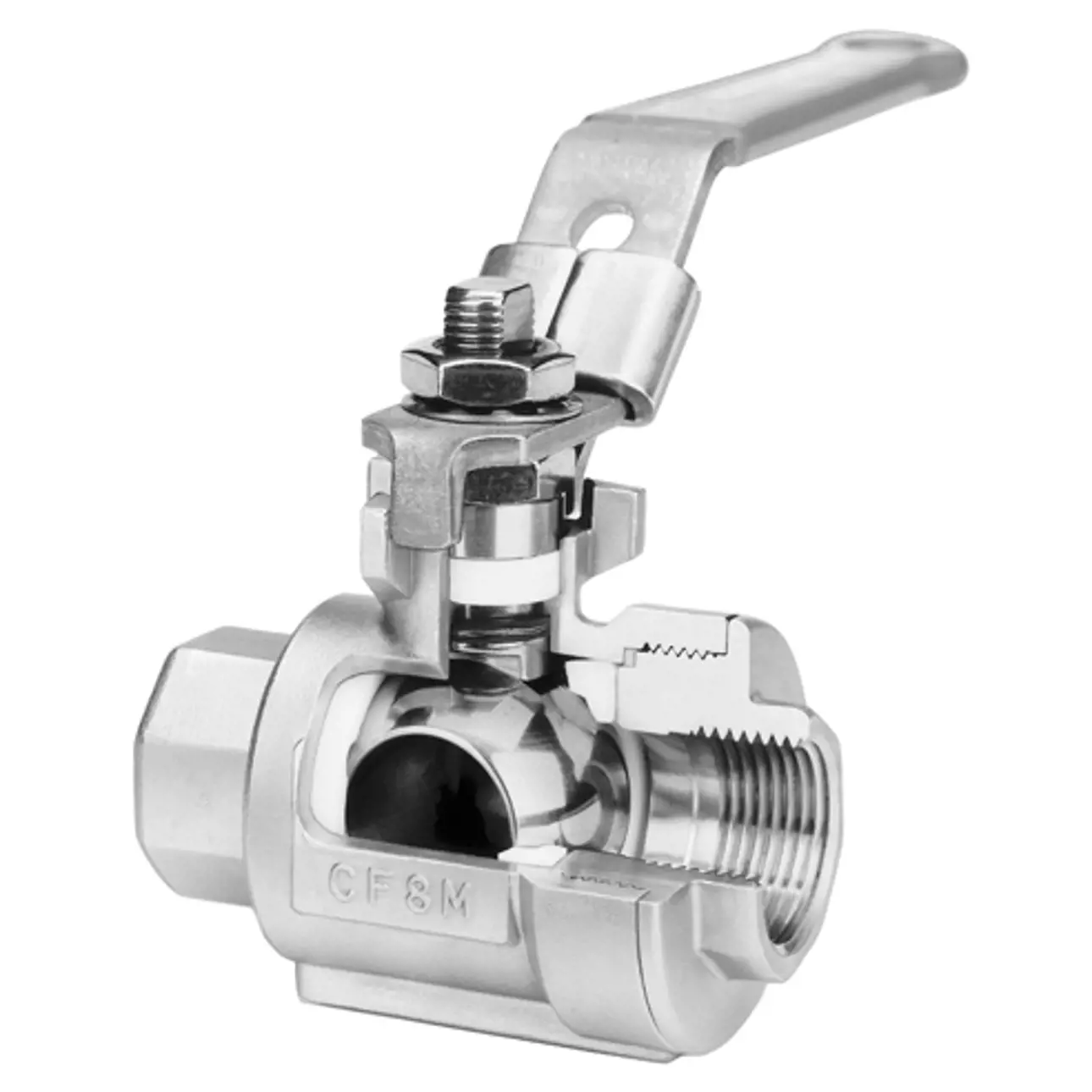

Valmet Jamesbury™ full port ball valve, series 6F

The Jamesbury Value-Line Series 6F ball valve offers exceptional economy and proven performance. These valves are Fire-TiteTM and configured with threaded ends for use with NPT...

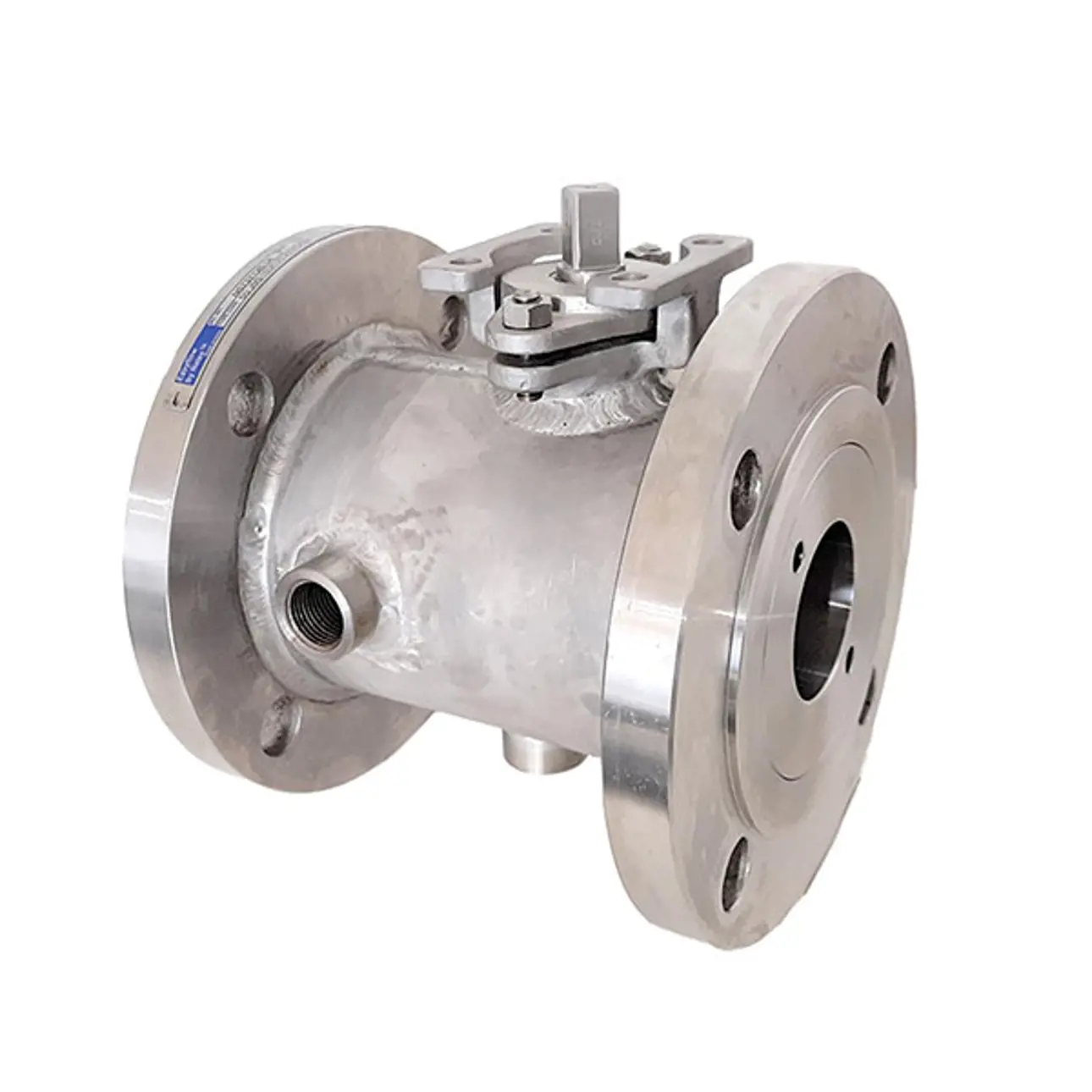

Valmet Neles Easyflow™ J9S series jacketed floating ball valve

Neles Easyflow J9S series fully jacketed flanged seat supported ball valve provides long, reliable performance. Valve comes with single piece body construction and a structurally s...

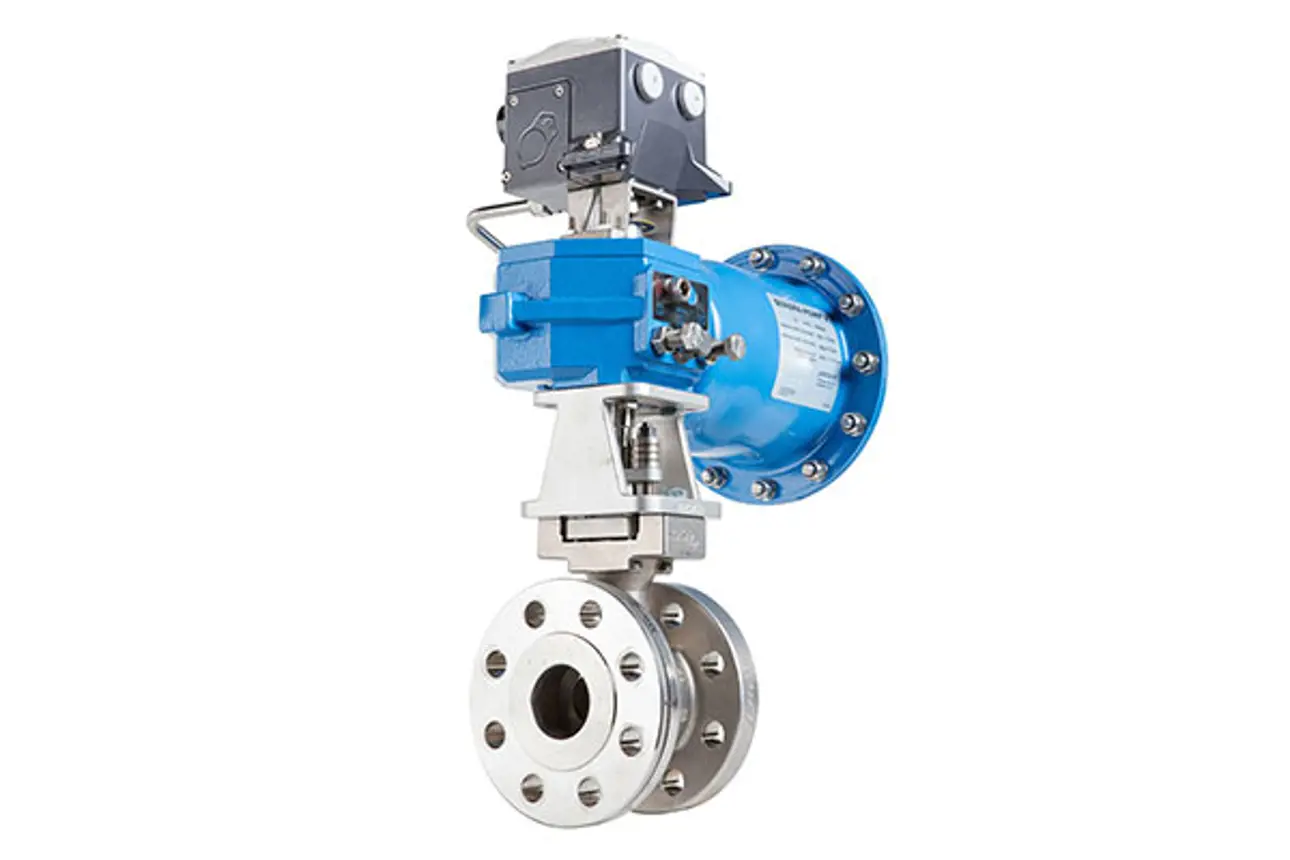

Valmet Neles™ ceramic ball valve, series E

Neles series E ball control valves are designed to meet the most severe erosive service requirements of wide range of industrial applications in pulp & paper, petro-chemical, r...

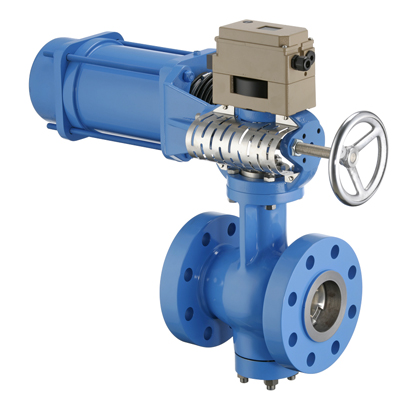

Valmet Eccentric rotary plug valves, series FC
