Wika Diaphragm Seal Accessories

Diaphragm Seal Accessories

Type / Brand - Wika

Enquire For Diaphragm Seal Accessories

Description of diaphragm seal accessories

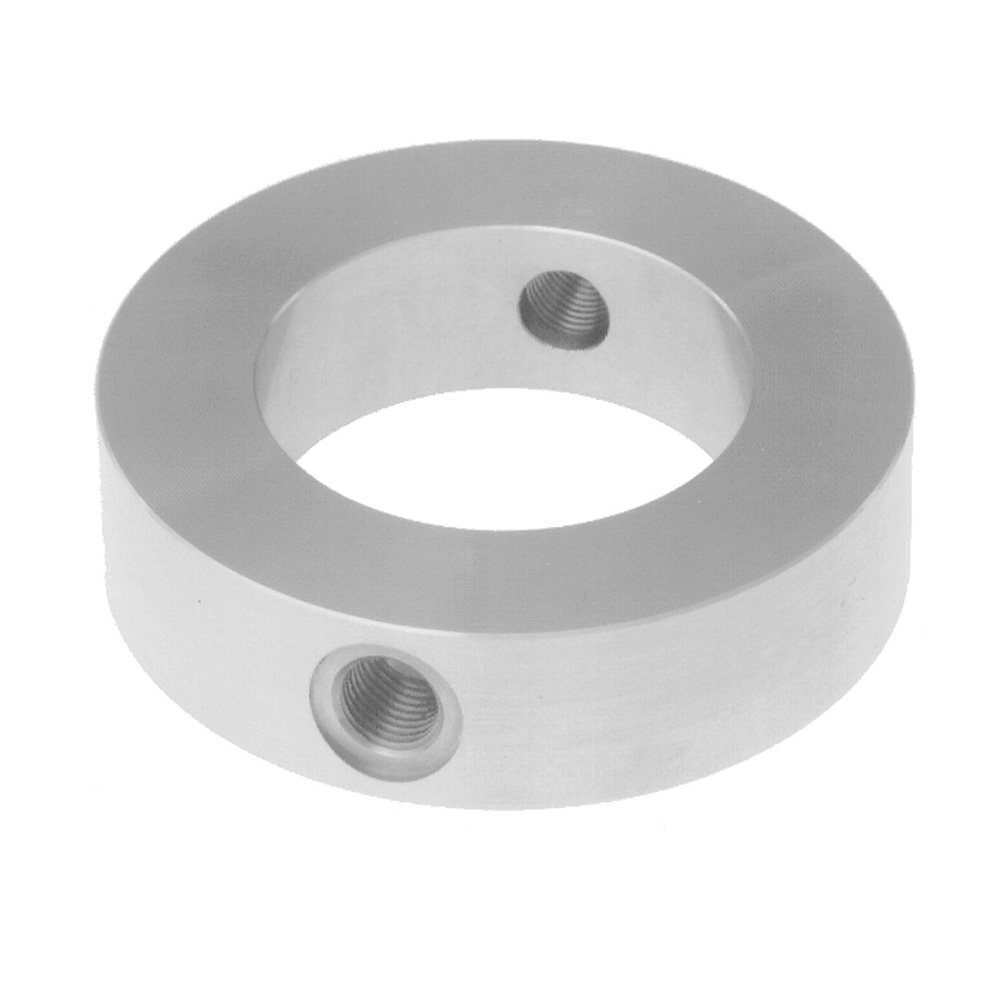

For flanges per EN 1092-1 and ASME B 16.5 DN 50, 80, 100, 125 or NSP 2", 3", 4", 5" PN 16 ... 100 or Class 150 ... 600 Material Stainless steel 316L Sealing faces Per EN 1092-1 form B1 or per ASME B 16.5 RF 125 ... 250 AA Flushing connection ½" NPT female (without plug screws) Installation The flushing ring is clamped between process flange and diaphragm seal using standard sealing elements (seals to be ordered separately).

Related Products

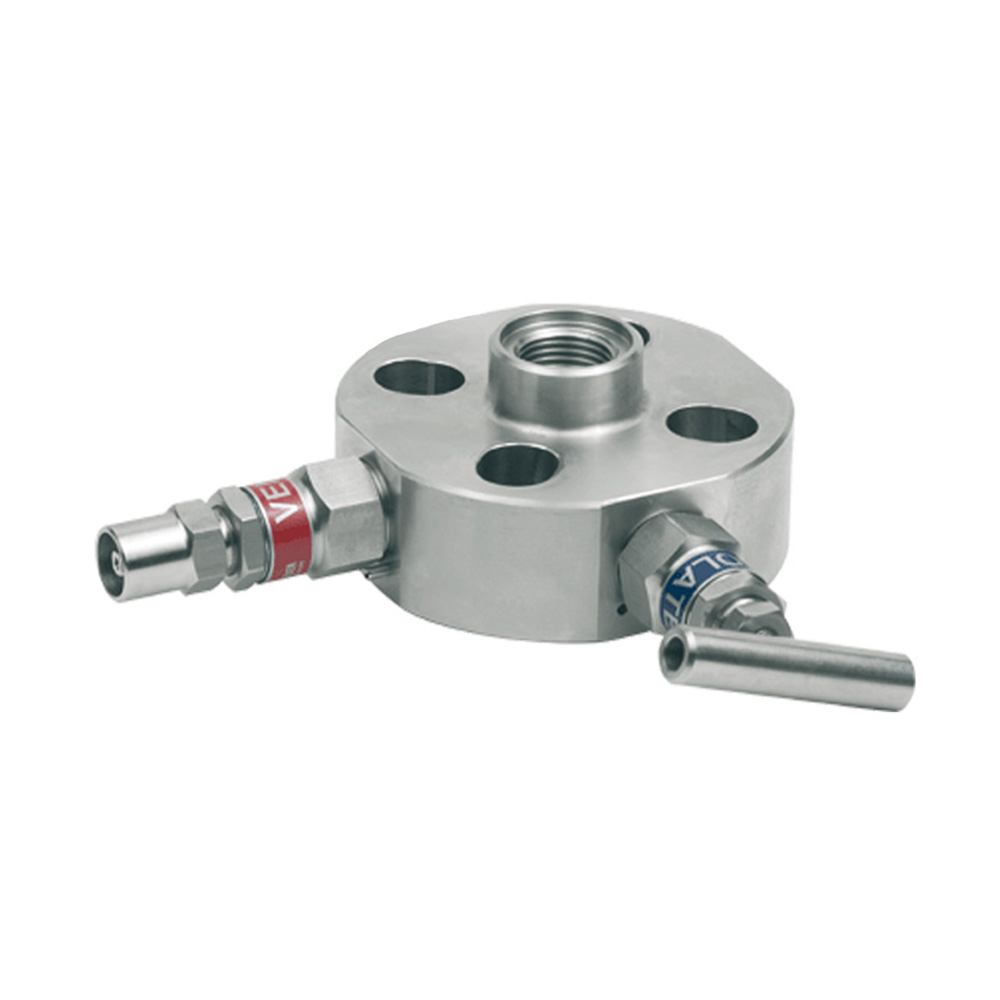

Wika Monoflange for pressure measuring instruments

For connections to the process using connection flanges, the monoflange enables an optimal and compact measuring point assembly. In addition, stress from vibration, potential leak ...

View Details

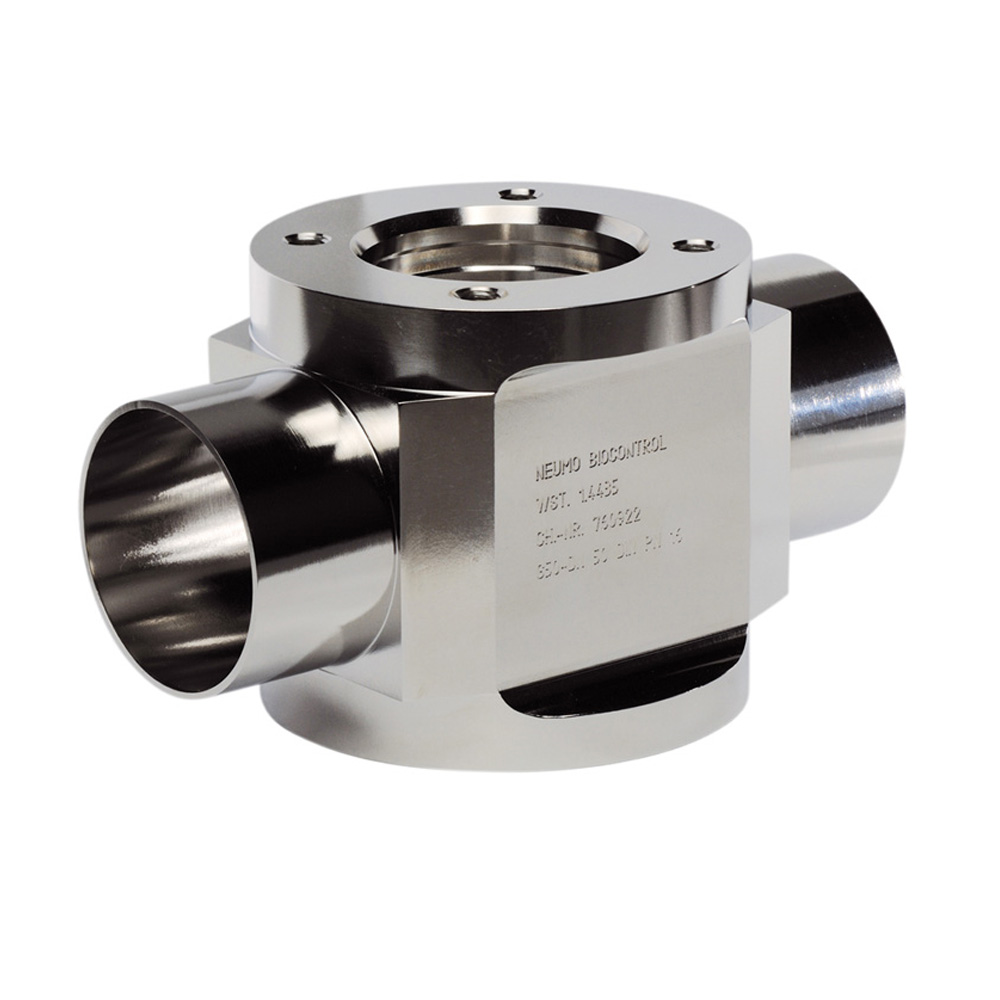

Wika NEUMO BioControl®

The pharmaceutical grade BioControl® System is used to adapt pressure and temperature measuring instruments to pipelines and vessels. It has been specifically developed for applica...

View Details

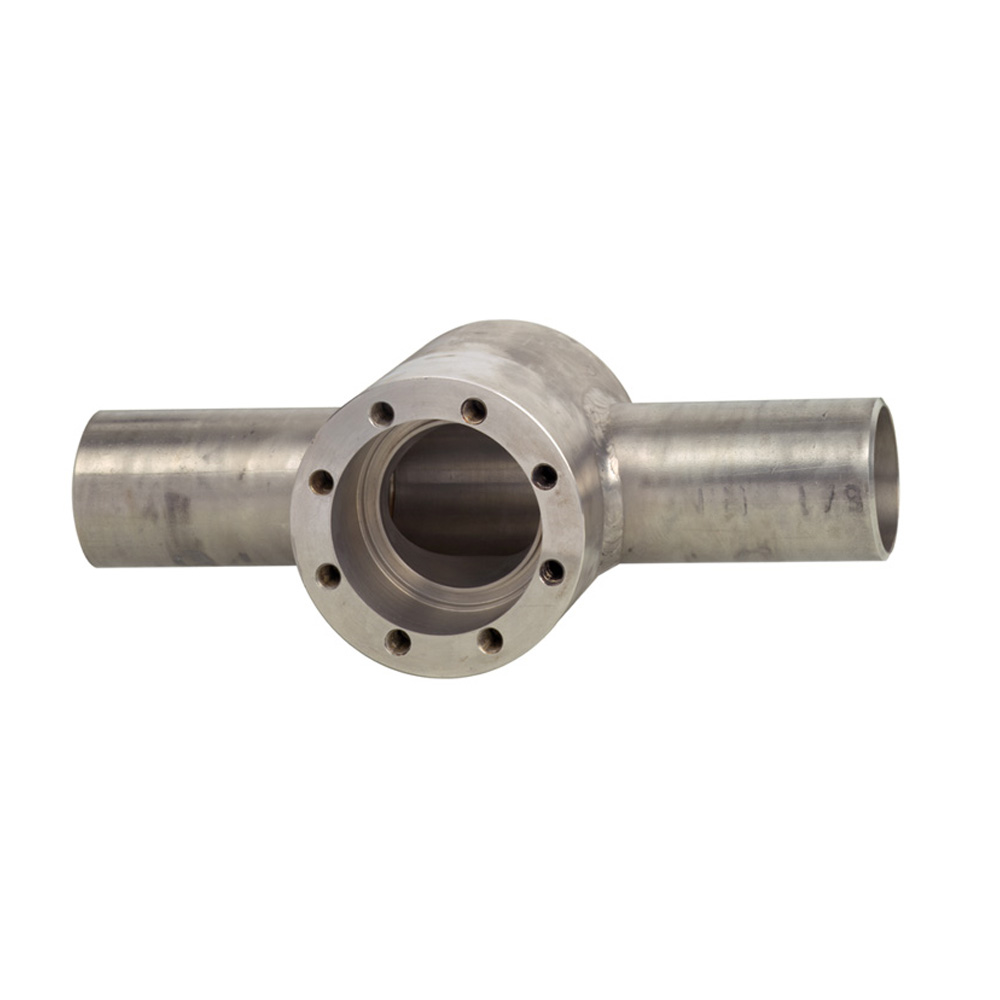

Wika Accessories for diaphragm seals

Stainless steel 1.4571 (block flange adapter) Heating pipeline (on model 910.23): steel St 35.8 l Stainless steel 316 L (saddle flange)

View Details

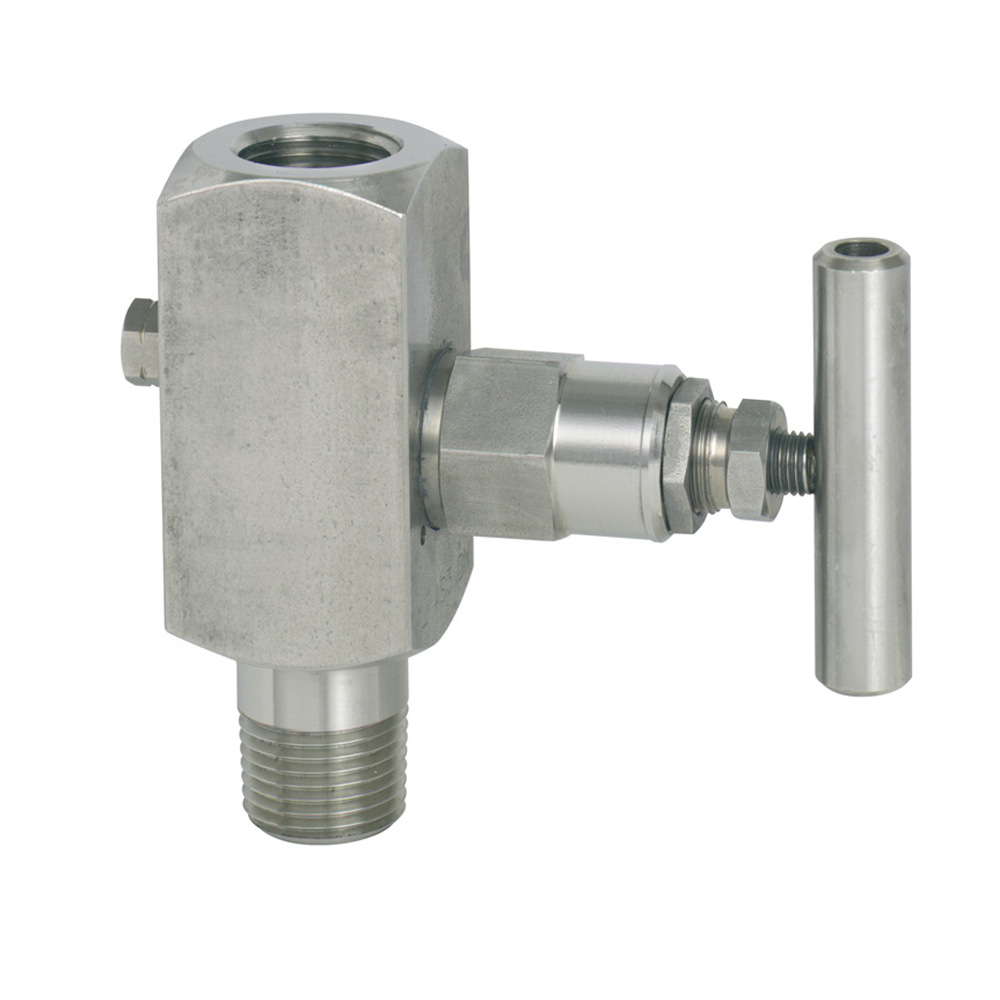

Wika Barstock valve in stainless steel version
